Profiling Machine
Profiling Machine
General Data

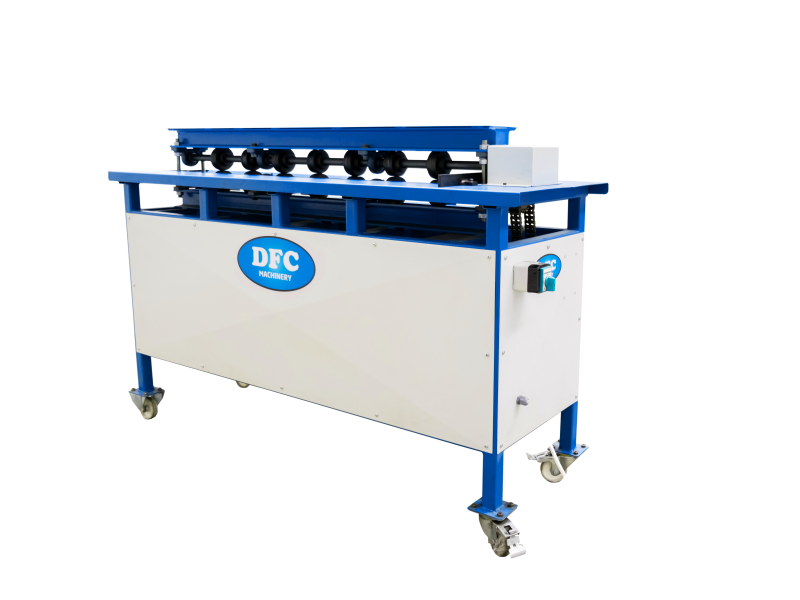

This machine allows you to make a reinforcemenet for ducts. İt is very easy to use. You can use this machine in order to make Z design,trapezoid design or U bead form.
Specification
TECHNICAL SPECIFICATIONS İZ-1 1300 mm İZ-1 2000 mm İZ-1 2500 mm
WORKING WIDTH Min. 350 mm Max. 1300 mm Min. 350 mm Max. 2000 mm Min. 350 mm Max. 2500 mm
SHEET THICKNESS Min. 0.40 mm Max. 1.20 mm Min. 0.40 mm Max. 1.20 mm Min. 0.40 mm Max. 1.20 mm
WEIGHT 210 Kg 360 Kg 450 Kg
MOTOR POWER 0,37 Kw 0,37 Kw 0,55 Kw
DIMENSIONS(LxWxH) 1440x530x105 0mm 2240x530x1050 mm 2740x530x1050 mm
