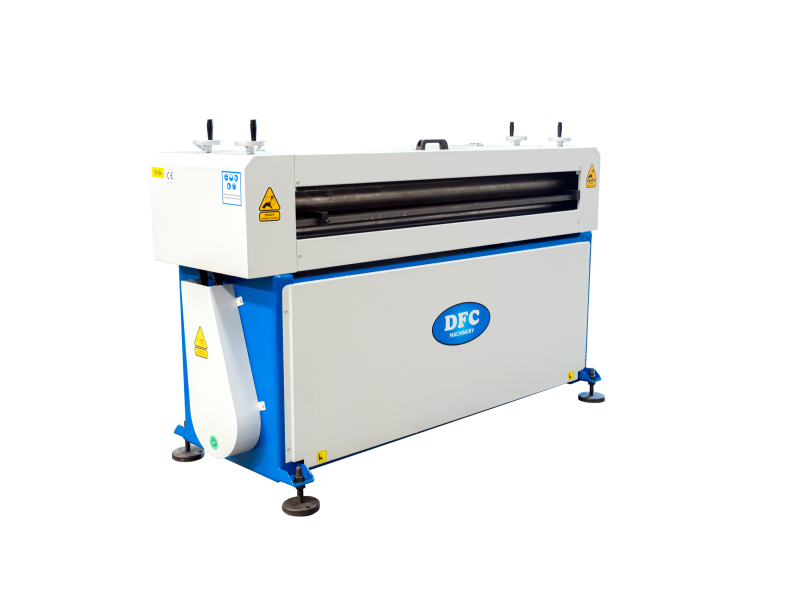

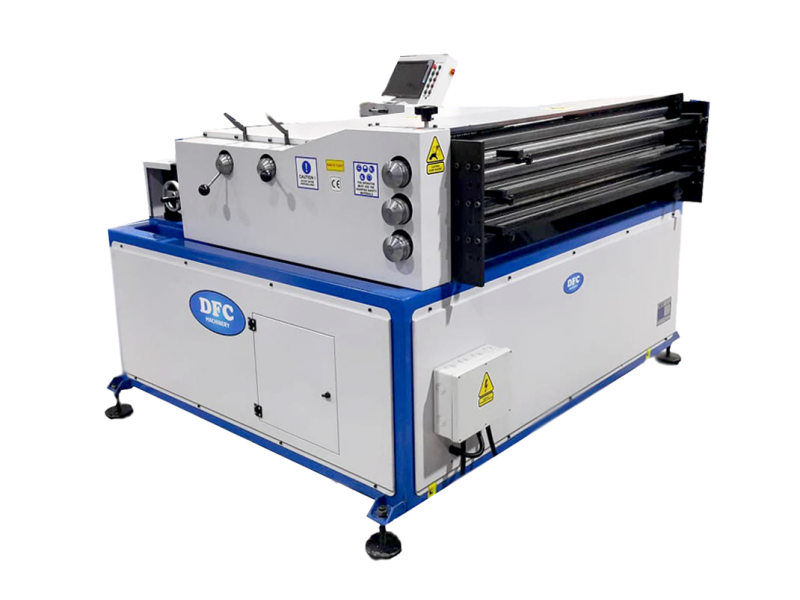

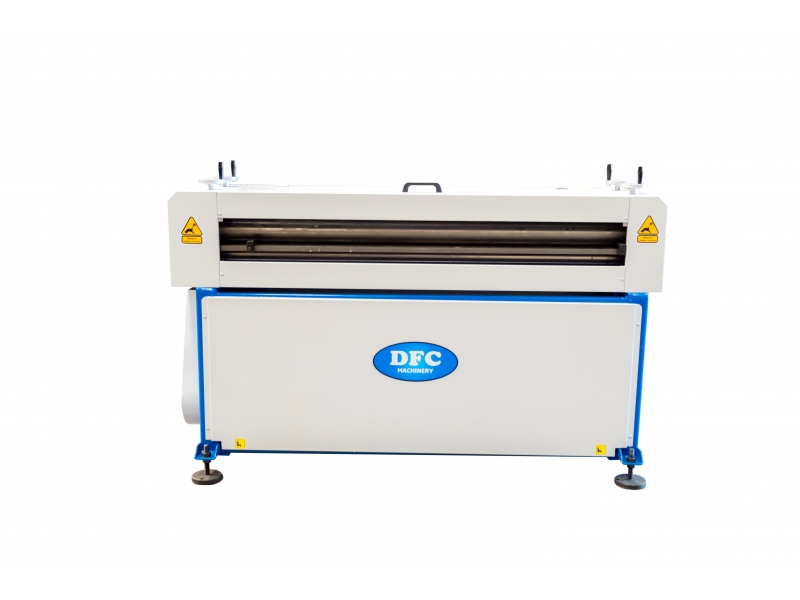

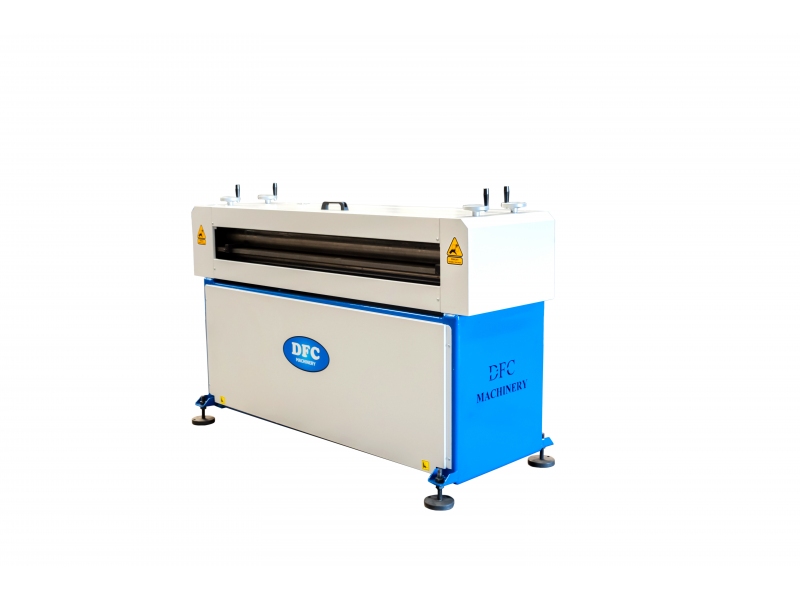

Plasma Sheet Metal Feeder
PDF Download
Plasma Sheet Metal Feeder
General Data
Thismachine allows you to reduce the waste material during the operations. It saves you time during the operation. This machine takes the sheet from the uncoiler and feeds in to the plasma cutting machine. During this operation it also makes the straightening operation.
Specification
POWER 2.2 KW
FREQUENCY 380/400 VAC 50-60 HZ 3 PH+ N+PE
CURRENT 5A
FEEDİNG SPEED 4Mt/Min
UNCILED CAPACİTY İnner diameter:Ø508 mm. Max.Sheetwidth 1500mm Roll weight Max. 5tonne
SHEET THİCKNESS 0.5-1.2 MM Galvanızıng, Aluminium, Staınless Steel.
WEİGHT 850 KG
 ROLL WEİGHT 250 KG
OPTİONS 1/2/3/4/5/6
